SYSTEM
PEX-AL-PEX / Multilayer Pipe & Fittings
Brand

PEX-AL-PEX / Multilayer Pipe & Fittings

S$ 0.00 S$ 0.00
  • Product Type
  • Material
  • Application
  • Brand
  • Connection
Product TypePipesFittings
MaterialPEX Multilayer
ApplicationDrinking Water
BrandRIIFO
ConnectionPress FitPush Fit
Contact Us

Downloads

Catalogue and test certificates are available on request.

Need a quote?

Enquire About This Product
PIPE SYSTEM

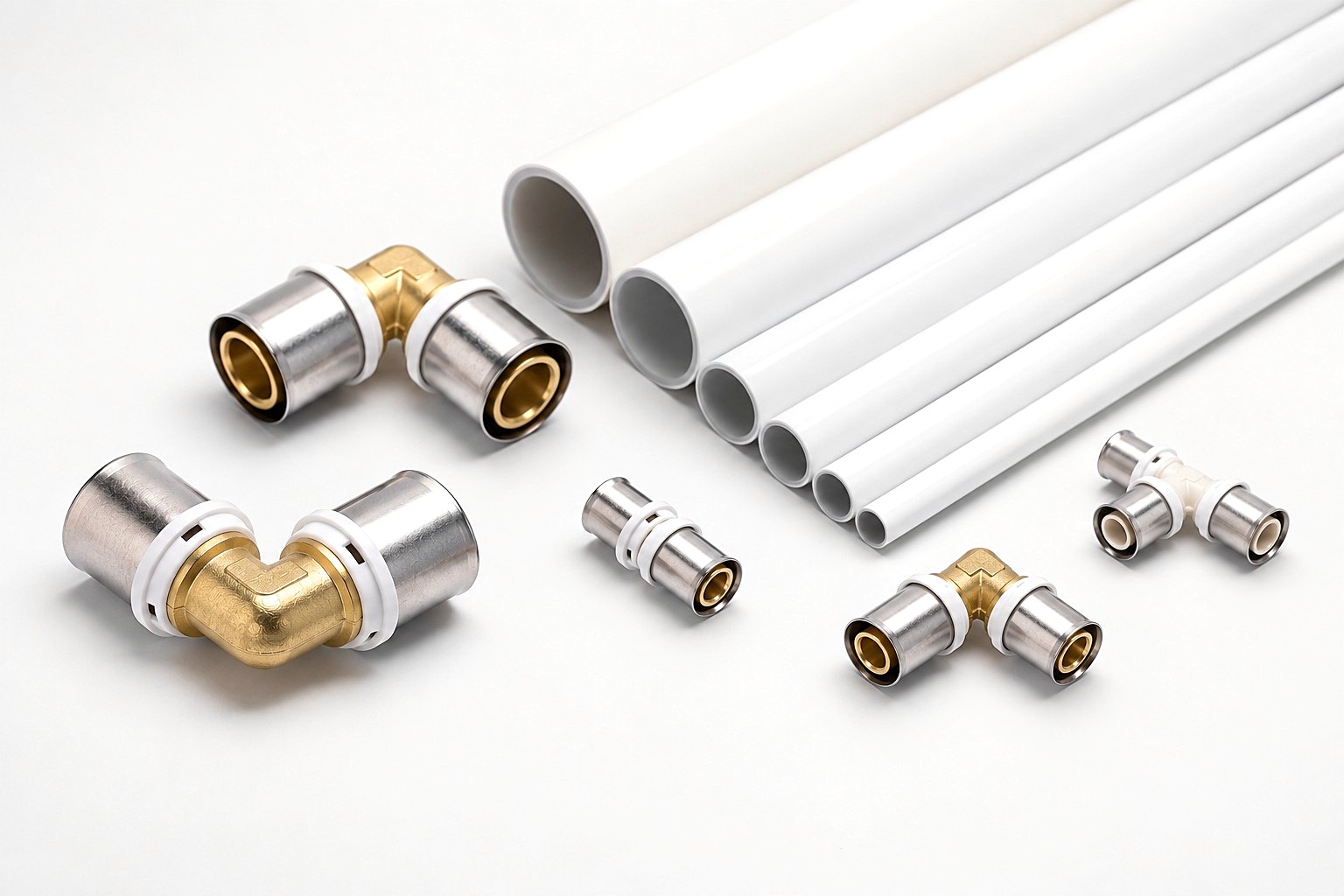

PEX Multilayer Pipe & Fittings

RIIFO multilayer pipe that unites the strengths of plastic and metal: flexible and tough, with high pressure and temperature resistance.

✓ Entirely corrosion-resistant✓ Oxygen & light barrier✓ Flexible, holds its shape✓ Up to 50-year service life
Enquire nowDownload catalogue
PEX Multilayer Pipe & Fittings
BrandVisit riifo.com

Downloads

Catalogue and test certificates.

Download selectedDownload all PDF
Catalogues
Download all
PDFProduct SummaryPDFPreviewPDFPipes & Fittings CataloguePDFPreview

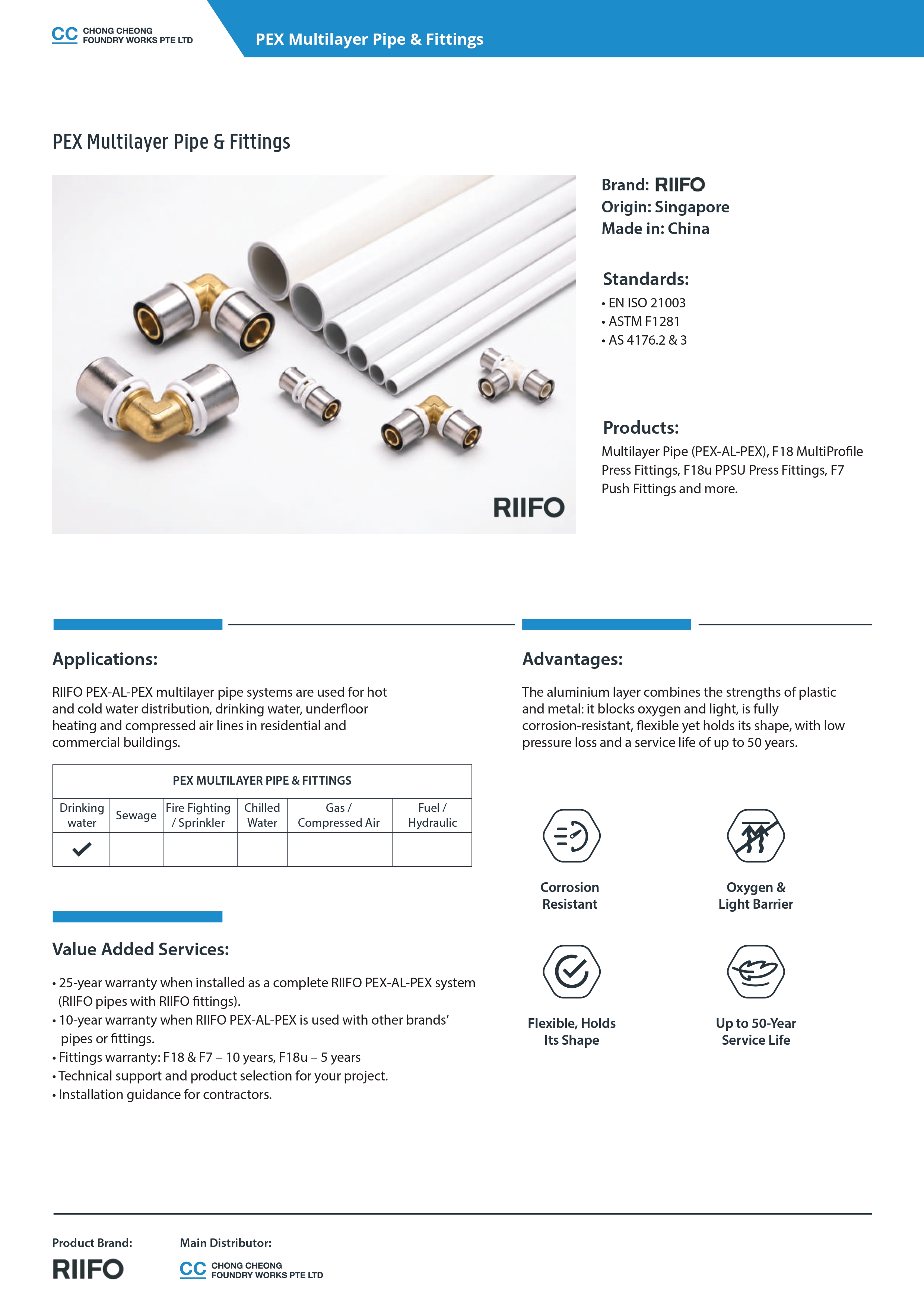

PEX Multilayer Pipe & Fittings product summaryProduct Summary · click to enlargeNeed full details? Download the catalogue →

Key Specifications

Standards
  • EN ISO 21003
  • ASTM F1281
  • AS 4176.2 & 3
Available Sizes
Ø14 to Ø75 mm
Applications
Drinking Water

What's in the System

Multilayer Pipe (PEX-AL-PEX)Straight CouplingReducing CouplingMale Straight CouplingFemale Straight CouplingElbowEqual TeeReducing TeeMale ElbowFemale ElbowY-branch TeeOthers

Value-Added Services

  • 25-year warranty when installed as a complete RIIFO PEX-AL-PEX system (RIIFO pipes with RIIFO fittings).
  • 10-year warranty when RIIFO PEX-AL-PEX is used with other brands’ pipes or fittings.
  • Fittings warranty: F18 & F7 – 10 years, F18u – 5 years
  • Technical support and product selection for your project.
  • Installation guidance for contractors.
FEATURED FITTINGS

RIIFO Fitting Range

A closer look at the RIIFO fitting series for PEX-AL-PEX multilayer pipe.

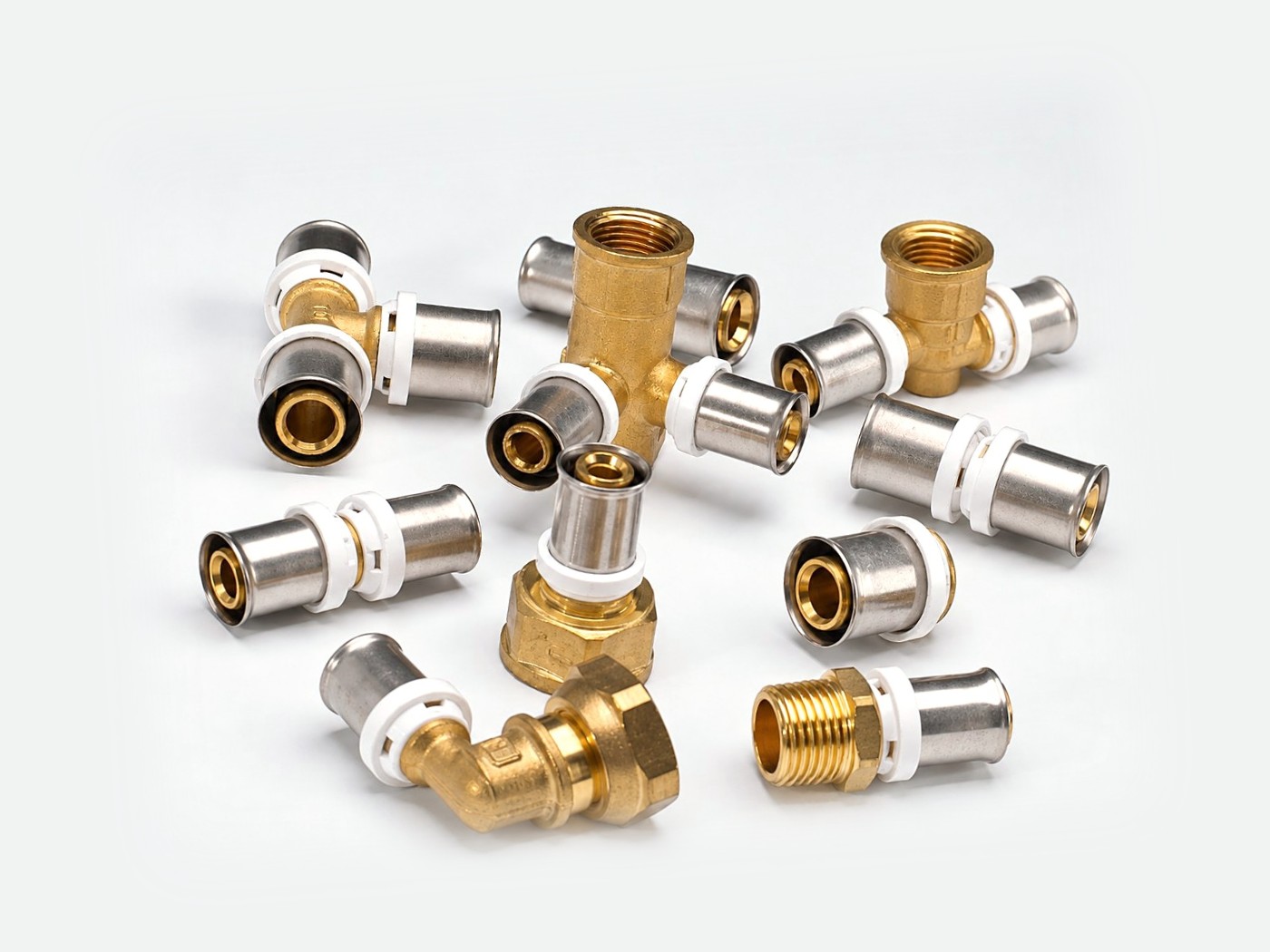

F18Leakage indicationRIIFO F18 MultiProfile Press Fittings
Brass / Press fitting

F18 MultiProfile Press Fittings

Brass press fitting that works with the most common press jaws.

10 barPressure
-20 to 120°CTemperature
Ø16 – 32 mmPipe OD
  • Pressable with U, H, TH and RFZ jaw profiles
  • Leak before press: unpressed joints show during testing
  • Three O-rings with stainless steel 304 sleeve

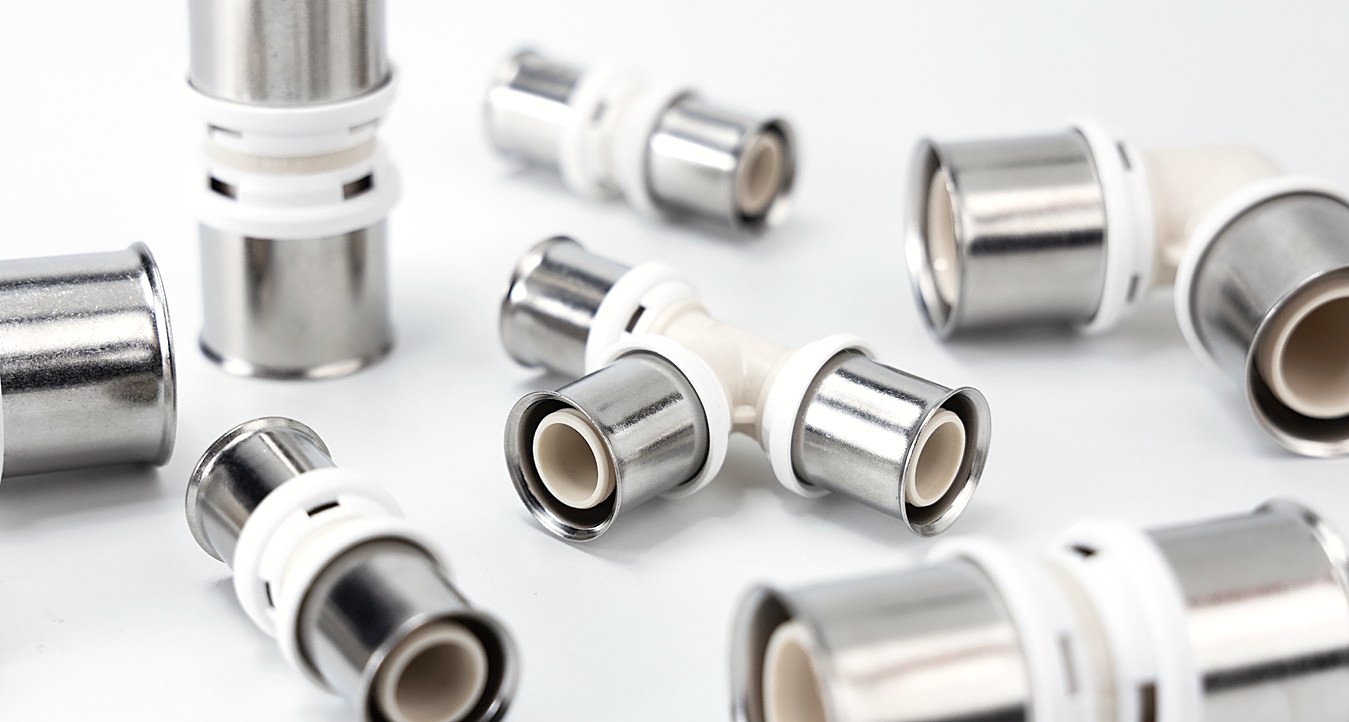

F18uRIIFO F18u PPSU Press Fittings
PPSU / Press fitting

F18u PPSU Press Fittings

Durable, corrosion-resistant PPSU press fitting, ideal for drinking water supply.

10 barPressure
Up to 70°CTemperature
Ø16 – 32 mmPipe OD
  • Lead-free PPSU body, hygienic for drinking water
  • Pressable with U, H and TH jaw profiles
  • Leak before press with three EPDM O-rings

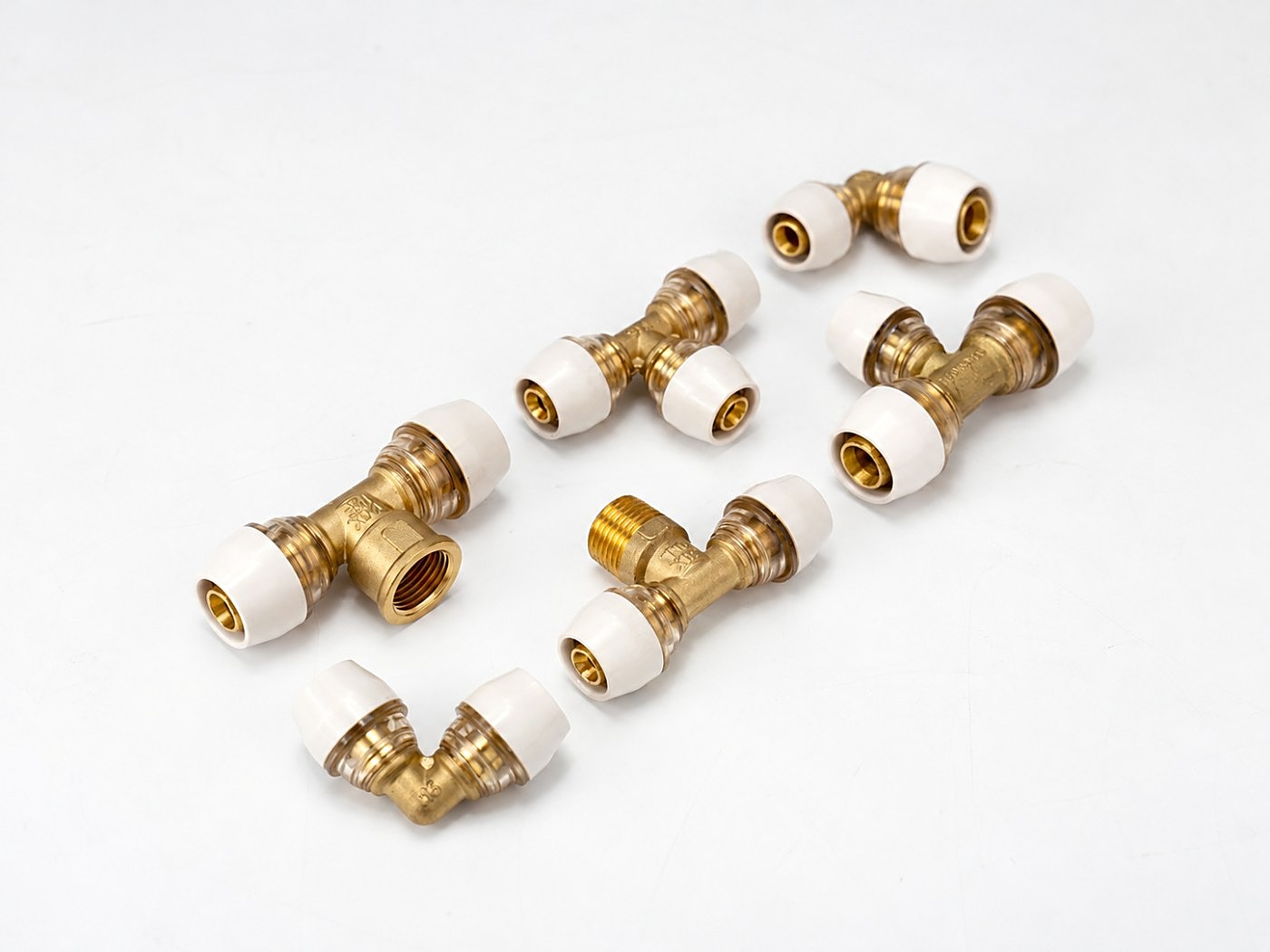

F7RIIFO F7 Push Fittings
Push-fit / No tools needed

F7 Push Fittings

Push-fit fitting that installs instantly, no special tools needed.

10 barPressure
-20 to 100°CTemperature
Ø16 & 20 mmPipe OD
  • Tool-free: no torch, glue or solvent
  • Inspection port confirms full pipe insertion
  • Lead-free brass body with PPSU outer shell
Need a quote for your project?Enquire About This System
← Previous systemPPR Pipe & Fittings Next system →Welded (ERW) Steel Pipes & Grooved Fittings

Other Pipe Systems

Ductile Iron Cement Lined Pipe & FittingsDuctile Iron Cement Lined Pipe & FittingsDuctile Iron Pipe with Polyurethane Coating & LiningDuctile Iron Pipe with Polyurethane Coating & LiningEpoxy Hubless Pipe & Fittings (EN 877)Epoxy Hubless Pipe & Fittings (EN 877)Stainless Steel Pressfit Pipe & FittingsStainless Steel Pressfit Pipe & FittingsSteel Pipe & FittingsSteel Pipe & FittingsPPR Pipe & FittingsPPR Pipe & FittingsWelded (ERW) Steel Pipes & Grooved FittingsWelded (ERW) Steel Pipes & Grooved FittingsPipe InsulationPipe Insulation

Specifications

Product Type Pipes, Fittings
Connection Press Fit, Push Fit
Material PEX Multilayer
Application Drinking Water
Brand RIIFO
